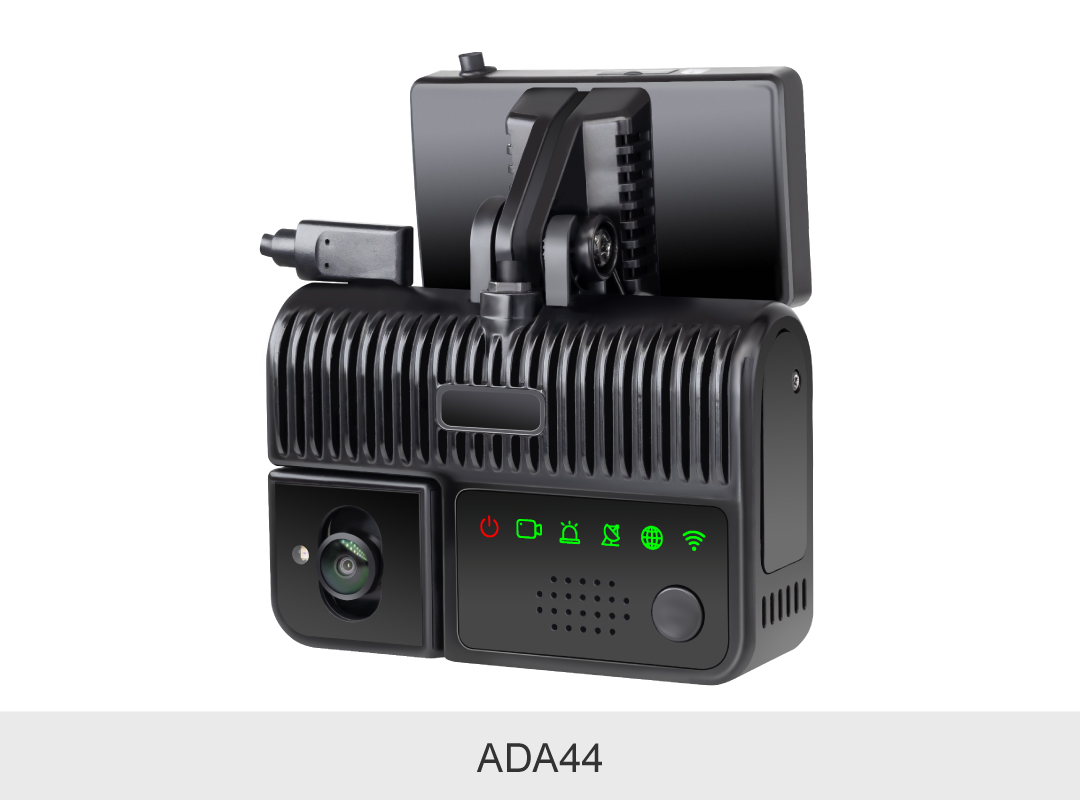

ADA44
Safe Site Technology EST DMS & ADAS AI Dashcam features an all-in-one design with built-in 4G, WiFi, and GPS antennas, along with front-view and driver monitoring cameras. This standalone device requires no complex attachments. Its 2K front-view camera provides real-time external monitoring of driving conditions and supports ADAS functions like lane departure and forward collision warnings. Inside the cabin, it monitors the driver’s behavior, issuing audible and visual alerts for any irregularities. Compact, stylish, and easy to install, it also enables remote monitoring and alerts for effective fleet management. Furthermore, it captures critical driving data for post-incident analysis, aiding in accident reconstruction and driver training. The system's cloud connectivity allows for seamless data transmission and remote software updates, ensuring it remains up-to-date with the latest safety features. By integrating these advanced technologies, the dashcam significantly enhances overall vehicle safety and fleet operational efficiency.
| Category | Specification | Value |
|---|---|---|
| System | Operating system | Linux |
| Operating interface | Mobile APP/WebUI | |
| Video permission | Administrator & user setting | |
| Video | Video input | Built-in 2K+Built-in 1080P+External 2*1080P (Optional) |
| Video output | PAL: 25 fps, NTSC: 30 fps | |
| Compression | H.264/H.265 | |
| Audio | Audio input | Built-in mic |
| Audio output | Built-in speaker | |
| Record format | Synchronized video & audio recording | |
| Audio compression | ADPCM | |
| Digital processing | Video resolution | 2K/1080P/720P/D1 |
| Storage | Video bit rate | 64kbps~10Mbps/channel |
| Audio bit rate | 32kbps | |
| Storage consumption | 56~2700MB/（channel*hour） | |
| Disk Media | Micro SD card x 2, max 512GB*2 | |
| Alarm | Alarm input | 6 CH (Optional) |
| Alarm output | 2 CH (Optional) | |
| Interface for communication | RS232 | 1 CH (Optional) |
| RS485 | 1 CH (Optional) | |
| CAN | 2 CH (Optional) | |
| RJ45 | 1 CH (Optional) | |
| USB | 1 CH (Optional) | |
| Wireless | 2G/3G/4G | Supported |
| WIFI | 2.4g | |
| WIFI hotspot | Supported | |
| GPS | Supported | |
| G-Force | Six-axis sensors | Supported |
| Software | Windows client | Supported |
| iOS client | Supported | |
| WebClient | Supported | |
| Power | Input | 10~32V |
| Output | 12V@4A | |
| Power Supply | less than 8W | |
| Standby Power Consumption | Not Supported | |
| Electrical specifications | Operating temp. & humidity | -20～60 ℃, RH 80%MAX |
| Super Capacitor | Supported | |

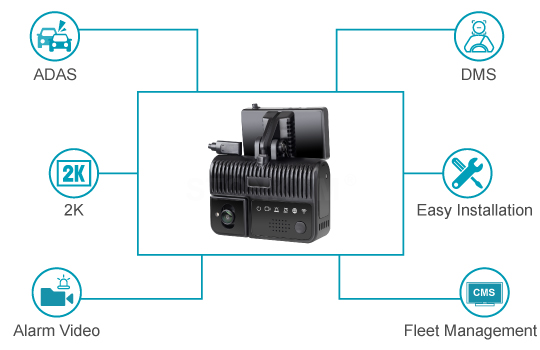

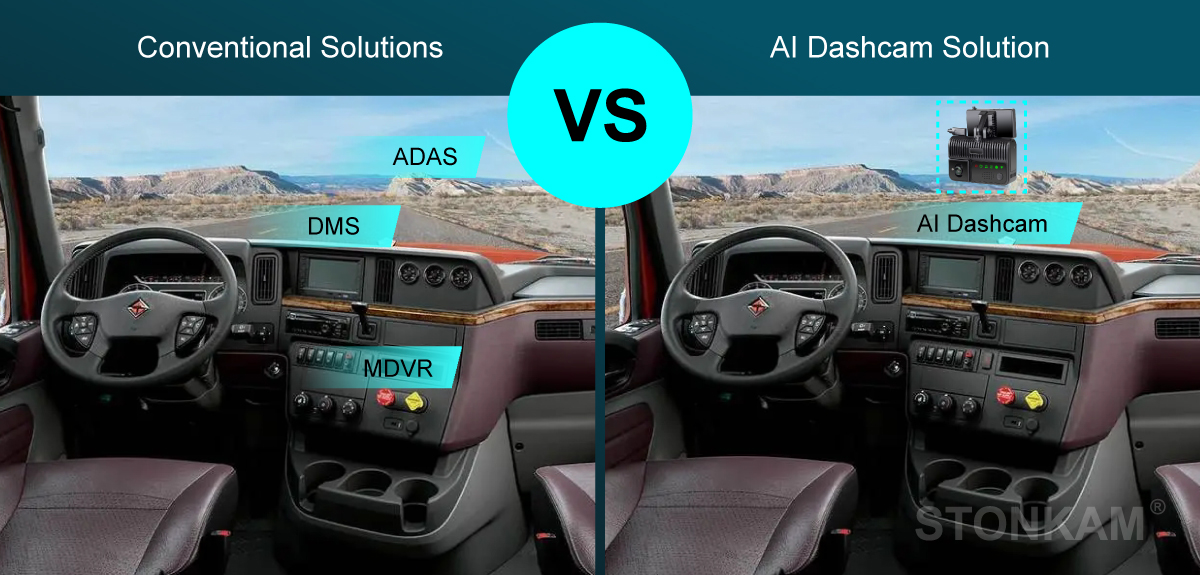

This all-in-one device provides comprehensive vehicle functionality with integrated 4G/WiFi/GPS antennas for seamless connectivity and location tracking, an advanced ADAS camera for lane departure and collision warnings, and a DMS camera for driver fatigue and distraction alerts, ensuring enhanced safety and efficient vehicle management. It simplifies installation and operation, offering real-time monitoring and control for diverse fleet and vehicle applications. Stay connected, safe, and alert with this complete solution. The device's robust design and intelligent features make it ideal for improving driver behavior and optimizing fleet performance. Its intuitive interface allows for easy access to data and settings, empowering users to make informed decisions.

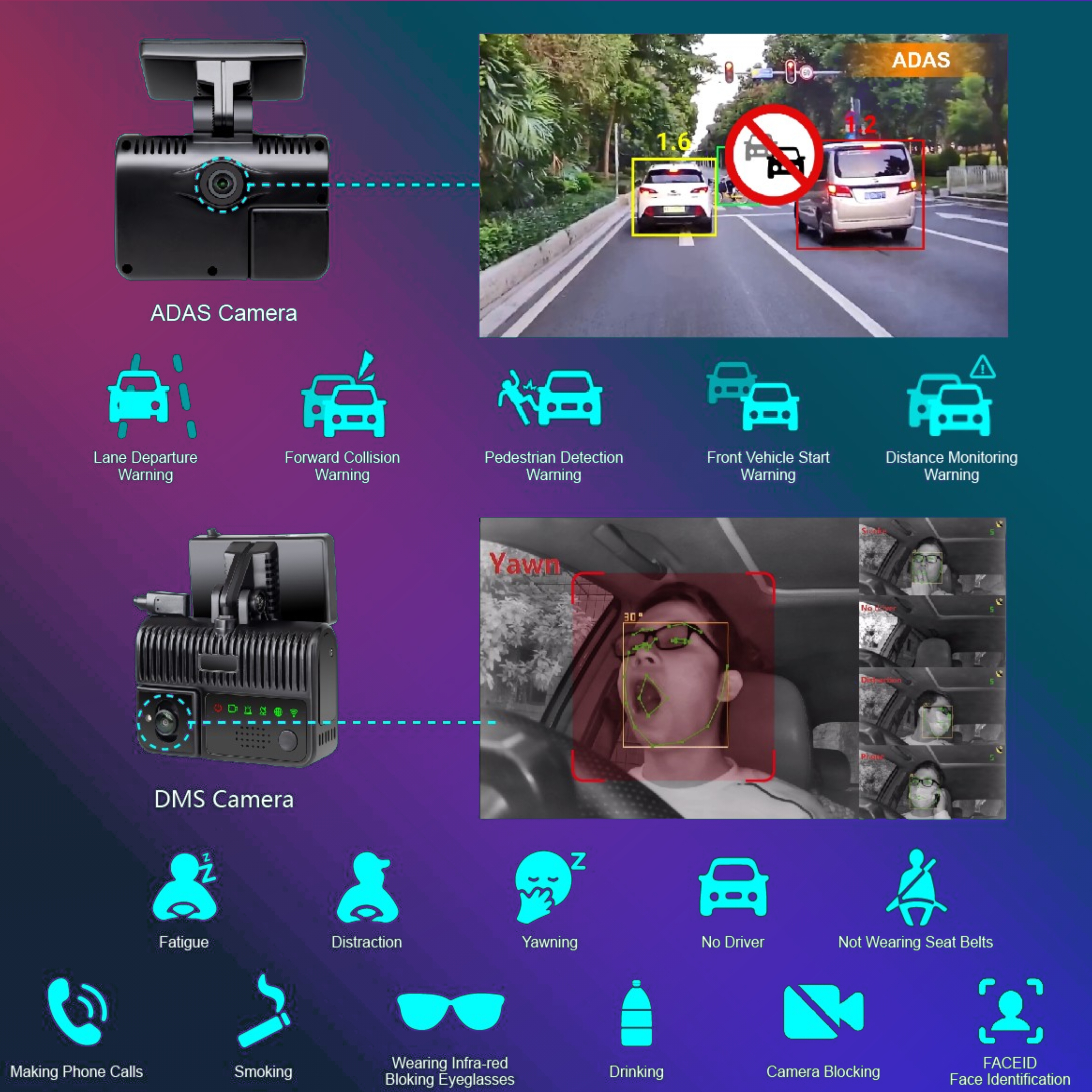

This system leverages a powerful built-in AI algorithm to provide advanced driver assistance and monitoring capabilities, making it a leading solution in Karnataka's dynamic transportation environment. The integrated ADAS (Advanced Driver Assistance System) algorithm offers comprehensive safety features, including forward collision warning (FCW), lane departure warning (LDW), pedestrian detection (PD), front vehicle start warning, and distance monitoring warning. These features work in real-time to alert drivers to potential hazards, significantly reducing the risk of accidents on Karnataka's diverse roads. The AI's ability to process and interpret visual data ensures accurate and timely warnings, enhancing overall road safety, a critical consideration in Karnataka's bustling cities and highways.
Complementing the ADAS functionality, the DMS (Driver Monitoring System) algorithm utilizes sophisticated AI to detect and alert on a range of driver behaviors, proving invaluable in Karnataka's long-haul transportation sector. It monitors for signs of fatigue, distraction, smoking, and making phone calls, as well as critical safety issues like not wearing a mask or seat belt, and camera obstructions. Furthermore, it incorporates FACEID face identification and no driver detection to ensure authorized and attentive operation, which is essential for Karnataka's fleet management. The system supports multi-language voice alerts for clear communication and offers the flexibility of custom-made AI algorithms to meet specific client requirements. This adaptability ensures that the system can be tailored to various applications and regional needs, providing a truly personalized safety solution, making it the best in Karnataka for enhancing driver safety and fleet efficiency.

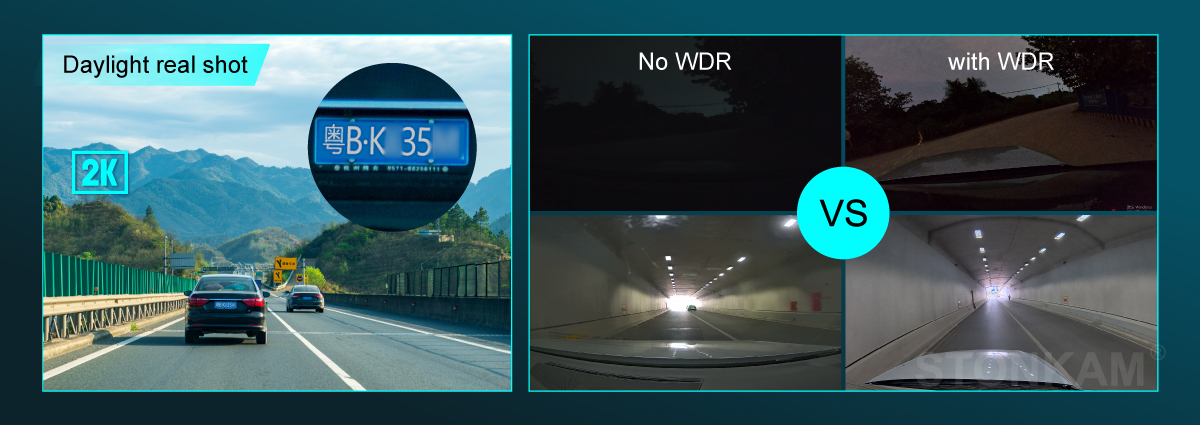

The 2K front view camera delivers ultra-high definition video recording during vehicle driving, capturing every detail with exceptional clarity. Supporting Wide Dynamic Range (WDR), it effectively balances light and dark areas, ensuring excellent image quality and a clear, detailed picture both during the day and at night. This high-resolution footage provides crucial evidence in case of accidents or incidents, enhancing accountability and safety. Its superior image quality also aids in accurate ADAS and DMS functionality, ensuring reliable detection and alerts in all lighting conditions.

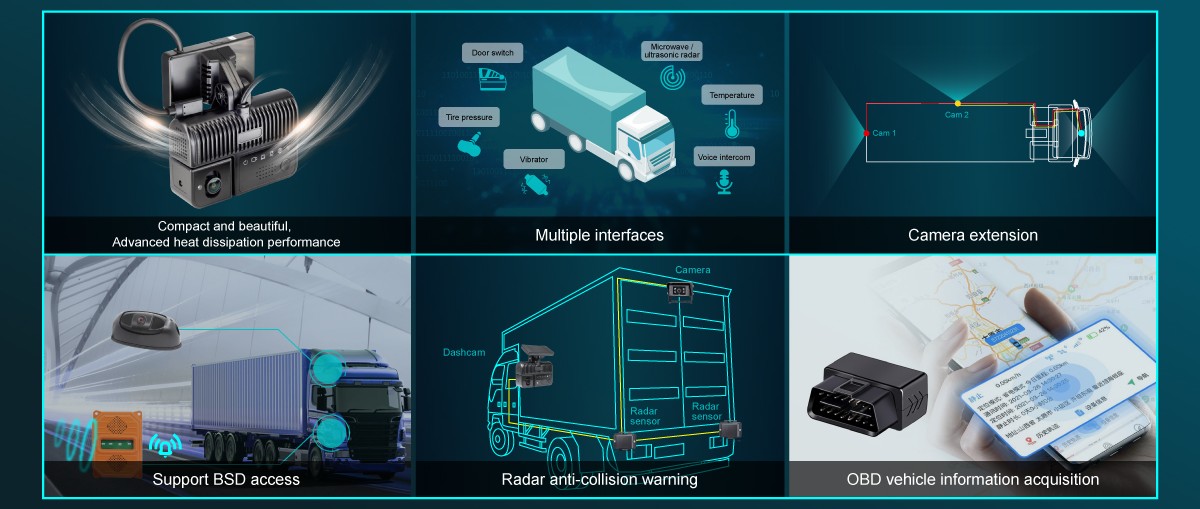

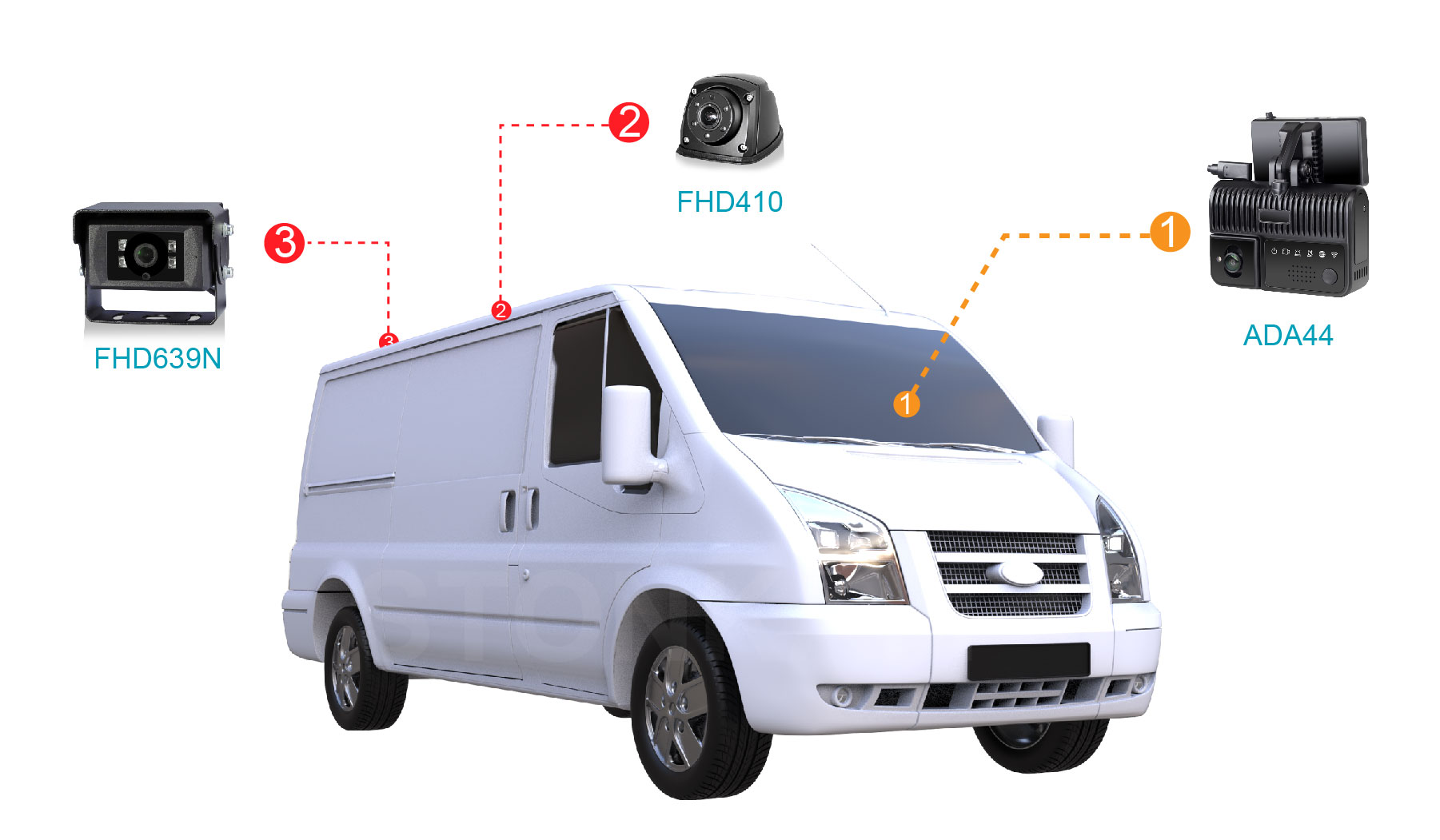

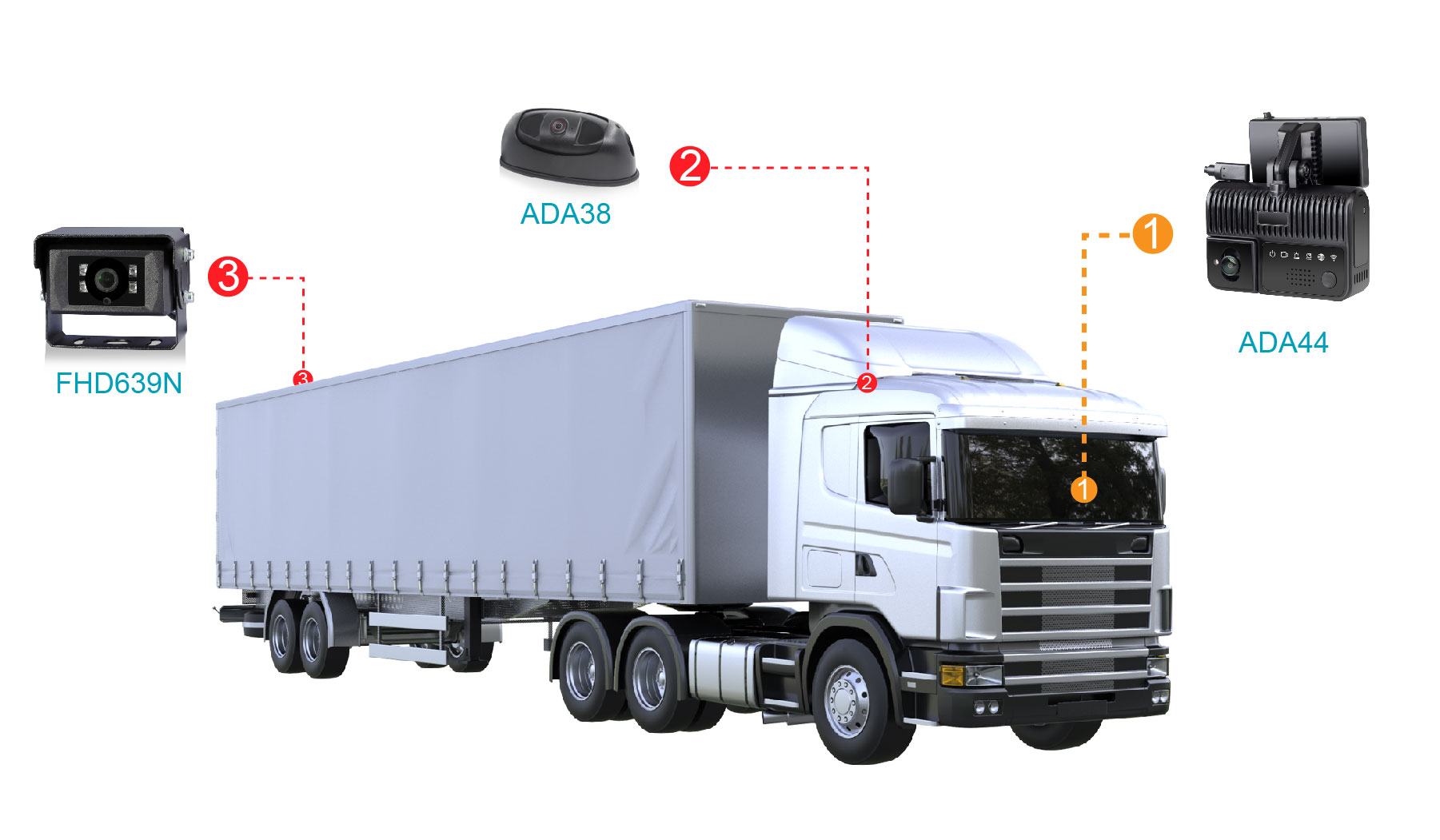

Our advanced system features large-area metal lines and multi-sided heat sinks for efficient heat dissipation. Designed with a compact and sleek body, it minimizes visual obstructions for users. Equipped with multiple interfaces, it supports various sensors, including Tire Pressure, Temperature, Weighing, Liquid Level, Audible & Visual Alarms, Open/Close Door, and Seat Vibrator for DMS fatigue warnings. Additionally, it allows 2-4 additional cameras for left, right, and rearview monitoring—eliminating the need for an extra control box.
An externally connectable AI camera enhances BSD pedestrian and vehicle recognition. The system also supports multi-channel ultrasonic radars for close-range alerts and millimeter-wave radars for long-range warnings. With OBD (CANBUS) vehicle information collection, it seamlessly integrates with third-party devices and vehicle master controls. This enables real-time data collection on fuel consumption, RPM, vehicle speed, and more—allowing fleet managers to track idle time, monitor driving violations, and evaluate driver performance effectively.
This app supports hotspot and iOS/Android Wi-Fi Direct, eliminating the need for an extra monitor. It enables real-time video viewing, parameter configuration, and video playback. Users can conveniently access and manage their device from their smartphones or tablets, enhancing flexibility and accessibility. The app's intuitive interface simplifies operation, providing a seamless user experience for both individual and fleet management.
Safe Site Technology DMS & ADAS AI Dashcam features an all-in-one design with comprehensive functionality. Equipped with a built-in AI algorithm, it supports both ADAS and DMS functions. Its compact and sleek design ensures easy installation. The system enables remote monitoring and real-time alerts, enhancing efficient fleet management. It is widely used across government supervision, transportation companies, logistics, and passenger transport industries. Providing intelligent monitoring solutions for trucks, hazardous material transport vehicles, buses, taxis, ride-hailing services, ambulances, and more, it ensures safety and operational efficiency.
